            Type Of Boards

  • Arduino Uno(R3)

                The Uno is a huge option for your initial Arduino. It consists of 14-digital I/O pins, where 6-pins can be used as PWM(pulse width modulation outputs), 6-analog inputs, a reset button, a power jack, a USB connection and more. It includes everything required to hold up the microcontroller; simply attach it to a PC with the help of a USB cable and give the supply to get started with a AC-to-DC adapter or battery.

  • Lilypad Arduino Board

              The lily Pad Arduino board is a wearable e-textile technology expanded by Leah “ Buechley”and considerately designed by “Leah and SparkFun”. Each board was imaginatively designed with huge connecting pads & a smooth back to let them to be sewn into clothing using conductive thread. This Arduino also comprises of I/O, power, and also sensor boards which are built especially for e-textiles. These are even washable!he Lily Pad Arduino board is a wearable e-textile technology expanded by Leah “ Buechley”and considerately designed by “Leah and SparkFun”. Each board was imaginatively designed with huge connecting pads & a smooth back to let them to be sewn into clothing using conductive thread. This Arduino also comprises of I/O, power, and also sensor boards which are built especially for e-textiles. These are even washable!

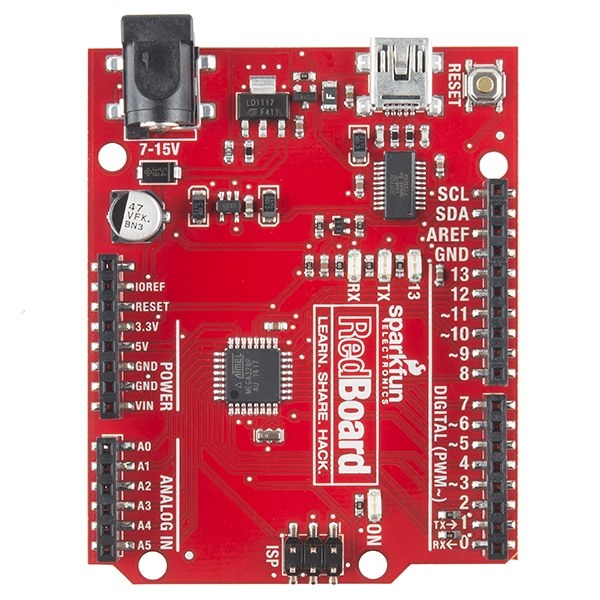

  • RedBoard Arduino Board

                 The RedBoard Arduino board can be programmed using a Mini-B USB cable using the Arduino IDE. It will work on Windows 8 without having to modify your security settings.It is more constant due to the USB or FTDI chip we used and also it is entirely flat on the back. Creating it is very simple to utilize in the project design. Just plug the board, select the menu option to choose an Arduino UNO and you are ready to upload the program. You can control the RedBoard over USB cable using the barrel jack..

  • Arduino Mega(R3) Board


                   The Arduino Mega is similar to the UNO’s big brother. It includes lots of digital I/O pins (from that, 14-pins can be used as PWM o/ps), 6-analog inputs, a reset button, a power jack, a USB connection and a reset button. It includes everything required to hold up the microcontroller; simply attach it to a PC with the help of a USB cable and give the supply to get started with a AC-to-DC adapter or battery.The huge number of pins make this Arduino board very helpful for designing the projects that need a bunch of digital i/ps or o/ps like lots buttons.

  • Arduino Leonardo Board


                    The first development board of an Arduino is the Leonardo board. This board uses one microcontroller along with the USB. That means, it can be very simple and cheap also. Because this board handles USB directly, program libraries are obtainable which let the Arduino board to follow a keyboard of the computer, mouse, etc.


  • The Arduino Shield



                           Additionally, Arduino shields are pre built circuit boards used to connect to a number of Arduino boards. These shields fit on the top of the Arduino compatible boards to provide an additional capabilities like connecting to the internet, motor controlling, providing wireless communication, LCD screen controlling, etc..The different types of an Arduino shields are
  • Wireless Shields
  • The GSM Shield
  • The Ethernet Shield
  • The Proto Shields
